ZONE III



MAXIMUM
HEIGHT

MORTAR
MIX

BANDS

VERTICAL
REINFOR- CEMENT

DIAMETER OF
VERTICAL
REINFOR- CEMEN
T

MORTAR MIX FOR BAND I VERTICAL
REINFOR- CEMENT

BRACING OF
PITCHED
ROOF

Building with Strip Foundation on Rock/ Hard Soil/Medium soil

Four Storey (Less than 15 m)

1:6 Cement-
Sand or
1:2:9  Cement-
Lime-Sand

1. Lintel Band
2. Roof Band/ Gable Band

3. Plinth Band

Not Required

Not Required

1:3 Cement-Sand
or
M 15 Concrete

Bracing at Tie Level

Building with Strip Foundation on Soft soil

Four Storey (Less than 15 m)

1:6 Cement-
Sand or
1:2:9  Cement-
Lime-Sand

1. Lintel Band
2. Roof Band/ Gable
Band

3. Plinth Band

Not Required

Single Bar of 12mm (TMT/TOR) or 16mm (MS)

1:3 Cement-Sand
or
M 15 Concrete

Bracing at Tie Level

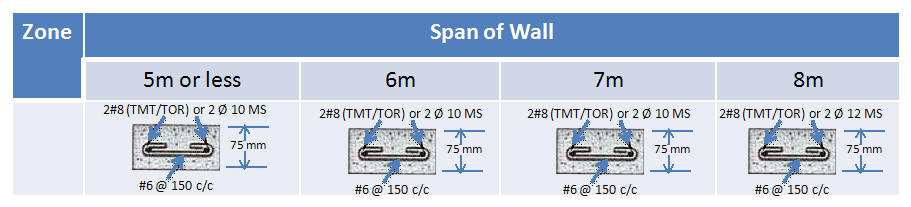

Details of Horizontal Bands in Masonry Building

(Buildings with Strip foundation on Rock/Hard Soil/Medium Soil/Soft Soil)



Z factor : 0.16

DISTRICTS LYING IN EARTHQUAKE HAZARD ZONE III
(based on the Vulnerability Atlas of India 2nd Edition, BMTPC)



ANDAMAN & NICOBAR ISLANDS



ANDHRA PRADESH

Adilabad, Cuddapah, Karimnagar, Khammam,  Warangal, East-Godavari, Guntur, Krishna, Nellore, Prakasam, West Godavari, Chittoor (12)

ARUNACHAL PRADESH



ASSAM



BIHAR

Buxar, Aurangabad, Kaimur, Rohtas, Gaya (5)

CHANDIGARH



CHATTISGARH

Raigarh, Bilaspur, Korba, Koniya, Sarguja (5)

DADRA AND NAGAR HAVELI

Dadra & Nagar-Haveli (1)

DAMAN & DIU

Daman, Diu (2)

DELHI



GOA

North-Goa, South-Goa (2)

GUJARAT

Sabar-Kantha, Anand, Bharuch, Kheda, Navsari, Surat, Vadodara, Valsad, Gandhinagar, Narmada, Panch-Mahals, The-Dangs, Dohad, Amreli, Bhavnagar, Junagadh, Porbandar, Mahesana, Surendranagar, Ahmadabad (20)

HARYANA

Fatehabad, Hisar, Jind, Kaithal,  (4)

HIMACHAL PRADESH



JAMMU & KASHMIR



JHARKHAND

Bokaro, Deoghar, Dhanbad, Dumka, Pakaur, Chatra, Garhwa, Giridih, Hazaribagh, Kodarma, Palamu (11)

KARNATAKA

Bagalkot, Belgaum, Bijapur, Chikmagalur, Chamarajanagar, Dakshina-Kannada,  Kodagu, Shimoga, Mysore, Udupi, Uttar-Kannada (11)

KERALA

Alappuzha, Ernakulam, Idukki, Kannur, Kasaragod, Kollam, Kottayam, Kozhikode, Malappuram, Palakkad, Thiruvananthapuram, Thrissur, Pathanamthitta, Wayanad (14)

LAKSHADWEEP

Lakshadweep (1)

MADHYA PRADESH

Damoh, Dewas, Dhar, Indore, Jhabua, Barwani, Betul, Chhindwara, Dindori, East-Nimar-(KHANDWA), Harda, Hoshangabad, Jabalpur, Katni, Mandla, Narsimhapur, Raisen, Sagar, Sehore, Seoni, Shahdol, Sidhi, Umaria, West-Nimar (KHARGONE) (24)

MAHARASHTRA

Chandrapur, Gadchiroli, Mumbai, Mumbai-(Suburban), Thane, Yavatmal, Ahmadnagar, Akola, Amravati, Aurangabad, Bid, Buldana, Dhule, Jalgaon, Latur, Nandurbar, Nashik, Osmanabad, Sindhudurg, Solapur (20)

MANIPUR



MEGHALAYA



MIZORAM



NAGALAND



ORISSA

Anugul, Baleshwar, Bargarh, Debagarh, Jharsuguda, Sambalpur, Sundargarh, Bhadrak, Cuttack, Jagatsinghapur, Jajpur, Kendrapara, Khordha, Puri, Dhenkanal, Mayurbhanj (16)

PONDICHERRY

Mahe, Yanam (2)

PUNJAB

Bathinda, Faridkot, Firozpur, Mansa, Muktsar, Sangrur (6)

RAJASTHAN

Bikaner, Dausa, Ganganagar, Jaipur, Jaisalmer, Jodhpur, Sikar, Udaipur, Dungarpur, Sirohi (10)

SIKKIM



TAMILNADU

Coimbatore, Dharmapuri, Erode, Namakkal, Salem, Kanniyakumari, The-Nilgiris, Theni, Tirunelveli, Vellore, Chennai, Kancheepuram, Thiruvallur, Dindigul, Villuppuram, Tiruvannamalai (16)

TRIPURA



UTTAR PRADESH

Agra, Allahabad, Ambedkar-Nagar, Auraiya, Azamgarh, Barabanki, Chandauli, Etawah, Faizabad, Farrukhabad, Fatehpur, Firozabad, Ghazipur, Hardoi, Jaunpur, Kannauj, Kanpur-Dehat, Kanpur-Nagar, Lucknow, Mainpuri, Mau, Mirzapur, Pratapgarh, Rae-Bareli, Sant-Ravidas-Nagar, Sultanpur, Unnao, Varanasi, Sonbhadra; Sitapur (30)

UTTARANCHAL



WEST BENGAL

Birbhum, Murshidabad, Puruliya, Bardhaman, Haora, Hugli, Kolkata, Medinipur, Nadia, Bankura (10)

Total

222
