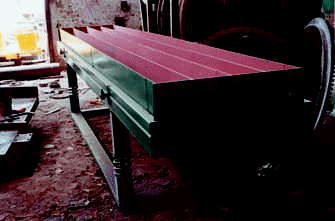

Model :CJ-1
|
USE
For production of Precast R.C.C joists which are used as an alternative to timber and steel joists
|
|
|
Production Capacity:
(per day in 8 hr shift)
Energy Source:
|
4 RCC joists
Electric, 3 Phase, 440 Volts
|
|
|
Size of machine :
Weight of Machine :
:Size of joist :
Cross-section size :
No. of joists per cycle :
Type :
Manpower :
Energy transmission :
Power requirement :
Compressive strength :
Compaction by :
|
4550x1600x750mm
550 kgs.
4166x100x125mm or
4166x150x150mm or any other size
100x125 mm or
150x150 mm
4 Nos.
Portable
Skilled - 1, Unskilled - 3
High amplitude vibrations
2 HP
150 kg/cm2
Vibration technique
|
|
|
