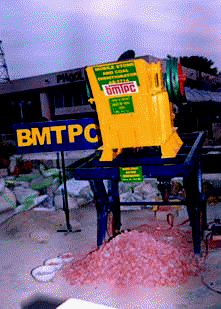

Model :AS 1714


USE
For crushing of stone/ boulders /coal at site. Suitable for manufacturer of concrete blocks , bricks, road contractors and brick field operators.
Production Capacity:
(per day in 8 hr shift)
Energy Source:

(a) Coal - 400 cft
(b) Stone 200 - 320 cft
Electric, 3 phase, 440 volts

Size of machine :
Weight of Machine :
Type :
Manpower :
Crushing Size :
Power requirement :
Type of coal/stone :
Energy Transmission :
1650 x 1040 x 1600 mm
100 kgs. approx
Portable, mobile
Skilled - 1, Unskilled -2
6 mm to 25 mm
7.5 HP
Medium hardness stone or all types of coal
Through jaw plates made of water
quenched maganese steel (toggle clapping)

Others :
Suitable for manufacture of concrete bricks and blocks,
road contractors and brick field operators
